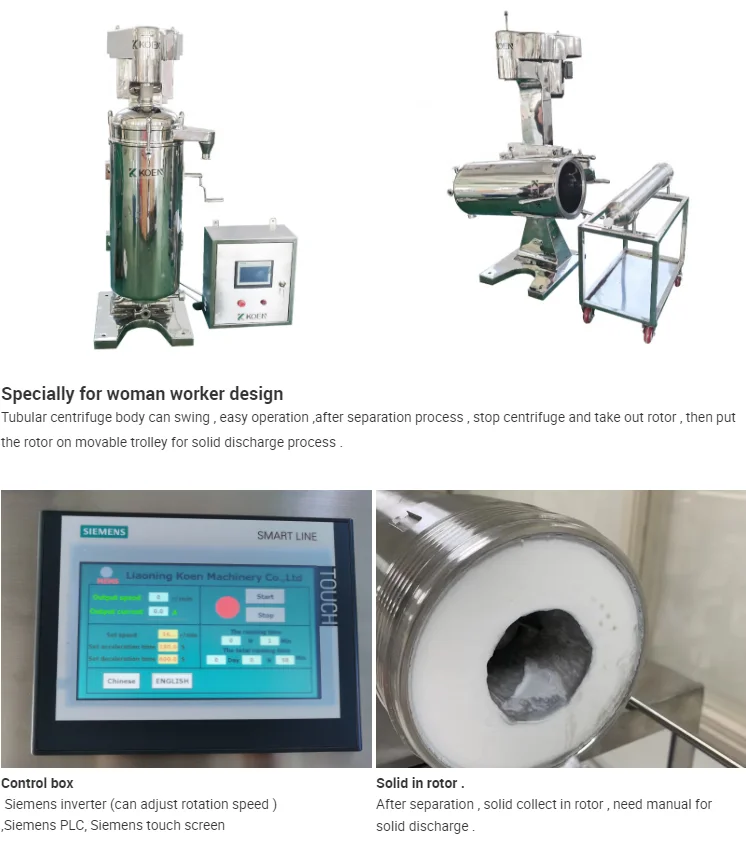

GQLY150 high speed tubular bowl centrifuge
Product Information
GQ Model Tubular centrifuge is a manualy solid discharge machine, the drum volume is 10L
Minimum order quantity：1
/ 1 unit
Get discounts when buying multiple units — we’d love to hear from you!
Product Specifications and Services
- Brand and Origin：Koen Machinery
- Equipment Status：NEW
- Main Material：SS304
No information available.
- Sales Unit：set
- Outer Packaging Material：wooden case
- Single Carton Dimensions：1200*950*1800mm
- Gross Weight per Batch：650kg
- Delivery Time：15-25 working days
- Logistics Options：by vessel
Product Information
Products Description
Products Description
Spirulina Red Microalgae and Heterotrophic Microalgae Solid Liquid Separation Machine Tubular Bowl Centrifuge
GQ Type tubular centrifuge is composed of main body, transmission device, drum, liquid collecting tray, and liquid-feeding bearing base. There is a flexible main axis on the top of drum, and a damping floating bearing at its bottom. With the linked buffering device, the main axis is connected with the passive wheel. Through the conveyor and the fastening wheel, motor provides power for the passive wheel, so the drum rotates around itself axis by high speed, and form strong centrifuge force field. Materials are launched from the bottom feeding inlet, by the centrifugal force, liquid flows upward along the drum wall, and is separated to layers because their different density.
GQ type two phase solid-liquid separator is suitable for solid content lower than 2% solution ,widely used for juice , bacteria ,fermentation liquid ,clarification process . After separation , the solid will collect in the drum .Then stop the centrifuge and take out the drum for solid discharge .
GQ Type tubular centrifuge is composed of main body, transmission device, drum, liquid collecting tray, and liquid-feeding bearing base. There is a flexible main axis on the top of drum, and a damping floating bearing at its bottom. With the linked buffering device, the main axis is connected with the passive wheel. Through the conveyor and the fastening wheel, motor provides power for the passive wheel, so the drum rotates around itself axis by high speed, and form strong centrifuge force field. Materials are launched from the bottom feeding inlet, by the centrifugal force, liquid flows upward along the drum wall, and is separated to layers because their different density.
GQ type two phase solid-liquid separator is suitable for solid content lower than 2% solution ,widely used for juice , bacteria ,fermentation liquid ,clarification process . After separation , the solid will collect in the drum .Then stop the centrifuge and take out the drum for solid discharge .
